Super Long Customized Laser Tube Cutting Machine P30120

As we know ,the general standard tube type is divided into 6 meters and 8 meters. But there are also some industries that need extra long tube types.

In our daily life, the heavy steel, used on heavy equipment such as bridges,ferris wheel and roller coaster of the bottom support,which are made of extra long heavy pipes.

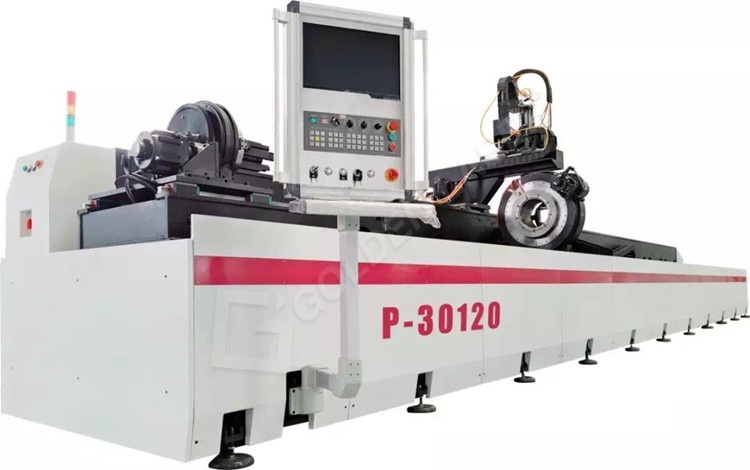

Golden Vtop Super long customized P30120 laser cutting machine, with cutting 12m length tube and diameter 300mm

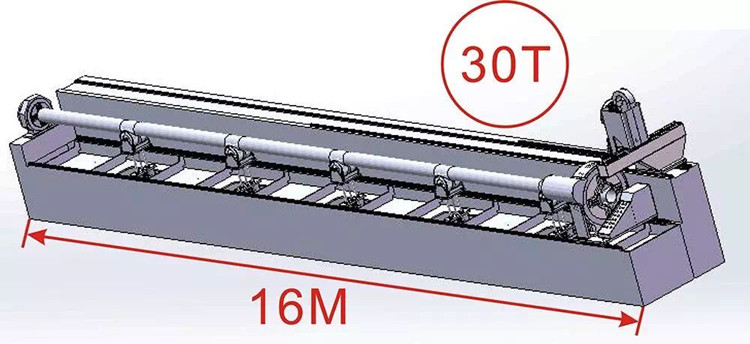

P30120 Machine With a heavy body shape

Weight: 30 tons

Machine length: 16 meters

Processing tube length: 12 meters

Processing tube diameter: 20mm-300mm

Although it is bulky, it can also do very fine processing, can processing various types of tubes

With strong flexibility

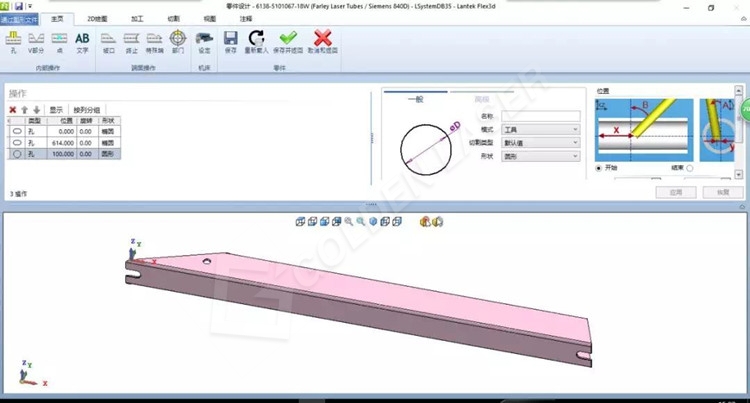

Drawing through Solidworks.

Can cut any shape quickly and flexibly.

High efficiency

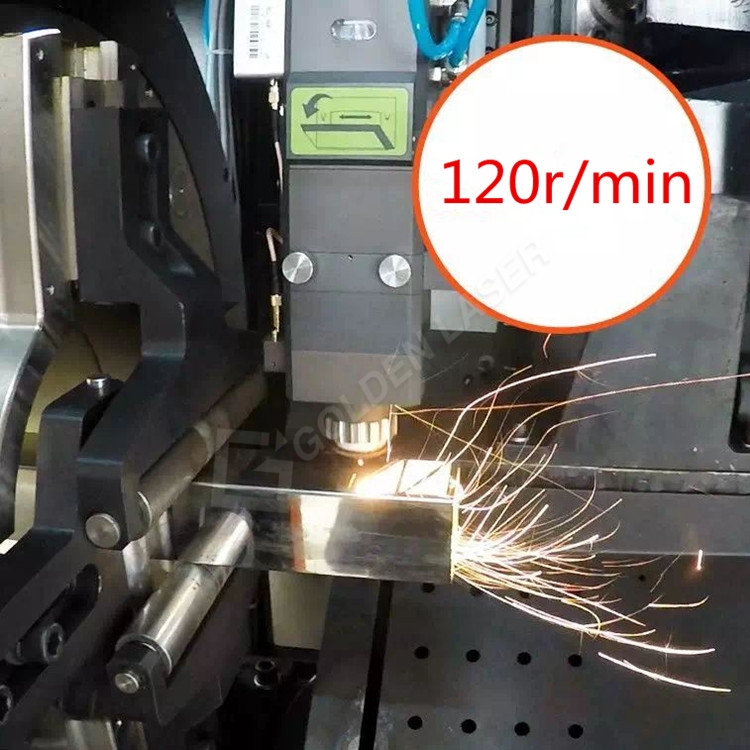

Chuck speed is 120r/min.

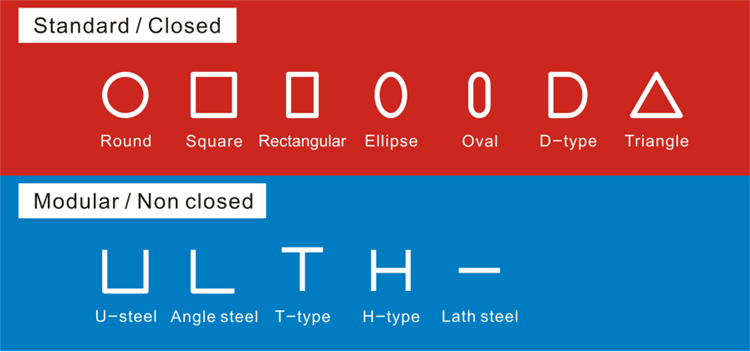

Based on the above advantages, laser tube cutting machine is widely used in the processing of round tubes, square tubes, rectangular tubes, elliptical tubes and shaped tubes in fitness equipment, office furniture, kitchen cabinets and other industries.

P30120 Machine Demo Video In Our Chinese Customer’s Factory
