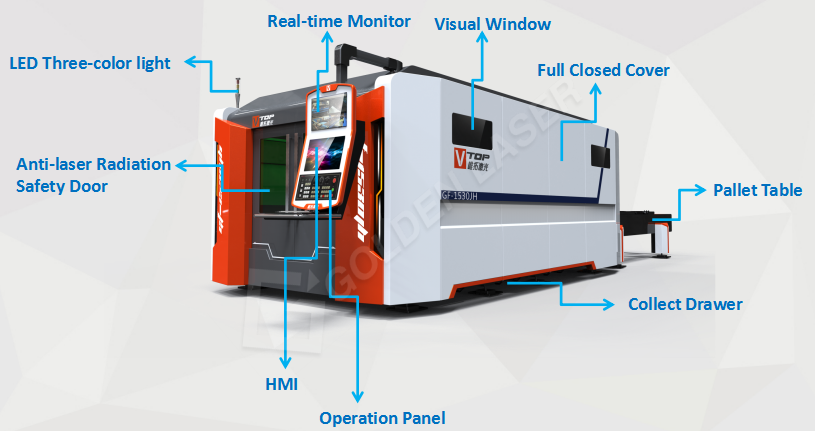

Vtop Laser GF-JH Series Fiber Laser Cutting Machine With Germany BECKHOFF Controller
Beckhoff from Germany
For 3000W,4000W,6000W,8000W fiber laser machine, we have two options, one is PA8000 , which is a closed-loop controller for specially designed for laser cutting, with mature application on laser cutting machine.
Another option is Beckhoff system from Twincat Germany, especially for high speed laser cutting, standing for top level laser cutting control system.

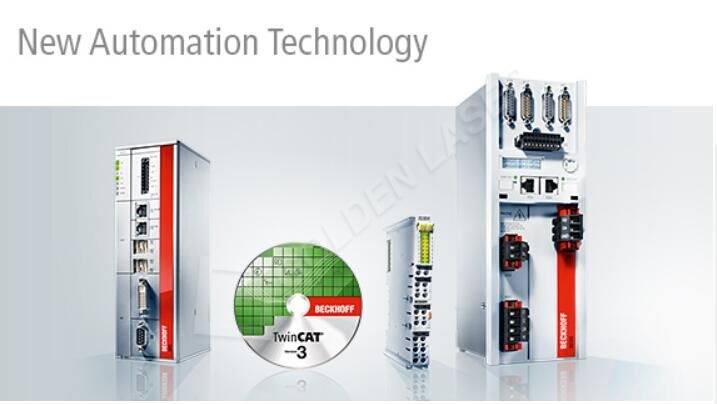

BECKHOFF Automation Tech
•In combination with the Motion Control solutions offered by the TwinCAT automation software, Beckhoff Drive Technology represents an advanced and complete drive system
•PC-based control technology from Beckhoff is ideally suited for single and multiple axis positioning tasks with highly dynamic requirements.
•BECKHOFF latest single cable technology, combined power and coding cable into one, which can eliminate signal interference
•High-precision photoelectric sensors and mechanical travel switches are installed on all the moving parts of the machine, which can capture every movement moment, and control machine act instantly
•System signal transmission without interference, make sure the machine running with high dynamic, energy efficient and low cost
Beckhoff supplies the right Industrial PC for every application. High-quality components based on open standards and the rugged construction of the device housings mean that the Industrial PCs are ideally equipped for all control requirements. Embedded PCs make modular IPC technology available in miniature format for DIN rail mounting. In addition to their application in automation, Beckhoff Industrial PCs are also ideally suited to other kinds of tasks – wherever reliable and robust PC technology is required.
EtherCAT measurement technology modules – extremely accurate, fast and robust.
Outstanding performance, flexible topology and simple configuration characterise EtherCAT (Ethernet for control automation technology), the real-time Ethernet technology from Beckhoff. EtherCAT sets new standards where conventional fieldbus systems reach their limits: 1,000 distributed I/Os in 30 µs, almost unlimited network size, and optimum vertical integration thanks to Ethernet and internet technologies. With EtherCAT, the costly Ethernet star topology can be replaced with a simple line or tree structure – no expensive infrastructure components are required. All types of Ethernet devices can be integrated via a switch or switch port. Where other real-time Ethernet approaches require special master or scanner cards, EtherCAT manages with very cost-effective standard Ethernet interface cards.
