Small Format Fiber Laser Sheet Cutter GF-6060 For Metal handicraft Industry
Recently,we have sold one set small format fiber laser machine GF-6060 to one of our customer in Lithuania,and the customer is doing the metal handicraft industries, the machine is for the production of various metal articles.
GF-6060 Machine Applications Applicable Industry
Sheet metal, hardware, kitchenware, electronic, automotive parts, advertising craft,metal handicraft, lighting, decoration, jewelry, etc
Applicable material
Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper other metal sheets.
Machine Description
Enclosure design meets CE standard, processing is safe and reliable
High precision ball screw driving system and laser head ensure cutting accuracy
Drawer style tray makes easy collecting and cleaning for the scraps and small parts
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

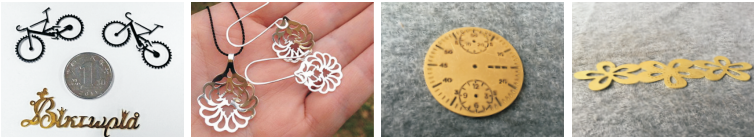

GF-6060 Machine Cutting Samples Demonstration
Machine Technical Parameters
| Laser power | 700W/1200W/1500W |
| Laser source | IPG or Nlight fiber laser generator from USA |
| Working mode | Continuous/Modulation |
| Beam mode | Multimode |
| Sheet processing area | 600*600mm |
| CNC control | Cypcut |
| Nesting software | Cypcut |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric | 12KW-22KW changed according to laser power |
| Position accuracy | ±0.3mm |
| Repeat position | ±0.1mm |
| Maximum position speed | 70m/min |
| Acceleration speed | 0.8g |
| Format supported | AI, BMP, PLT, DXF, DST, etc , |

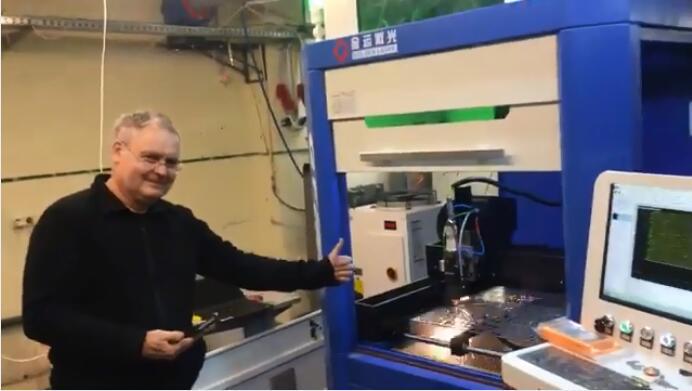

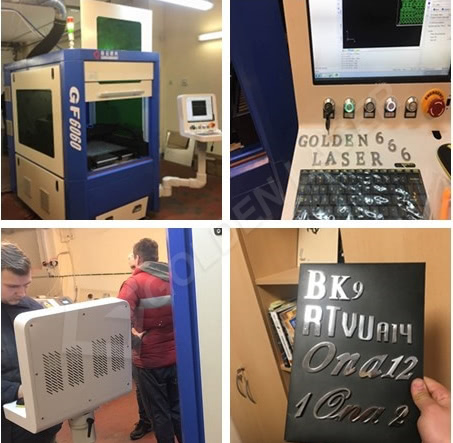

GF-6060 Machine In Lithuania
