Golden Vtop Laser Strongly Recommended 2500w Fiber Laser Cutting Machine GF-1530JH
Golden Vtop Laser Strongly Recommended 2500w Fiber Laser Cutting Machine GF-1530JH,and the machine 2500w performance is equal to 3000w while the price is equal to 2000w.
Golden VTOP Fiber Laser Cutting Machineis produced with efficient and ecological fiber laser technology with the proven reliability and flexibility.
2500w n-light Fiber Laser Cutting Sheet Machine GF-1530JH Unique features
1. Very easy to operate.
2. Quick and easy installation.
3. Low investment and operating costs.
4. The most cost-efficient solution for every requirement.
5, Bright surface Cutting: Smooth cutting surface, high speed and high accuracy
6, Diversified Sheet Choice: Standard cutting mode and Clean Cut Mode
7, Thickness of Cutting : 0-20mm metal
8, High-speed Perforation: diversified high-speed perforation technology
9, Automatic alignment, automatic search edge, and auto-focus.
10, Cutting gas controlling: Advanced integrated high pressure proportional valve
Advanced Functions
1. Laser diagnostics
2. Adaptive distance regulation
3. Cutter compensation look ahead
4. Fly/Fast-cut
5. Pipe/Tube cutting (optional)
6. Database for storage of all necessary parameters (SQL based database)

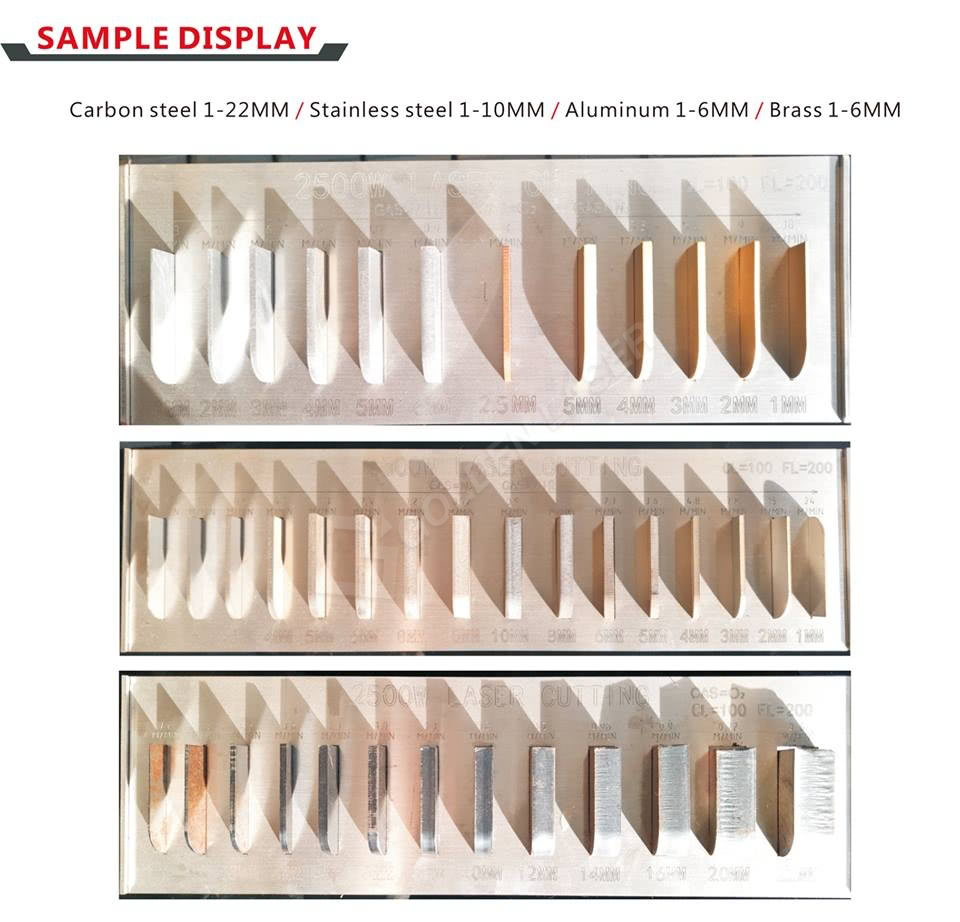

2500W Fiber Laser Cutting Sheet Samples Display
2500W Machine Technical Parameters
| Overall equipment | |||
| Model Number | GF-1530JH | ||
| Floor plan | 5m*11.5m | Cutting area | 1550mm*3050mm |
| X | 1550mm | Y | 3050mm |
| Z | 200mm | ||
| Table height | 0.8m | Table loading | 800kg |
| Table exchange | 15s | Noise | <65 Db |
| Electric supply | AC380V±5% 60Hz | Rated power | 28 KW |
| Temperature | 10—35 Celsius degree | Moisture | 40—85% |
| Environment | Below 1800 meters above sea level, there is no flammable, explosive, strong | ||
| File format | AI 、BMP 、PLT 、DXF 、DST | ||
| laser source | |||
| Brand | nLIGHT | Output power | 2500W |
| Run mode | Continual/Modulate | Output connector | QBH |
| Wavelength | 1070nm | Beam mode | Multimode |
| machine tool motion | |||
| Moving controller | Cypcut | Transmission | Precision gear rack drive |
| Move speed | Max 120m/min | Move acceleration | 1.5g |
| Cut acceleration | 1.2g | Position | 0.03mm/m |
| Repeat position | 0.02mm/m | ||
| supplementary system | |||
| Laser head | Cypcut capacitive height controller + Swiss Raytools laser cutting head | ||
| Cooling | Specialized double temperature double pump cleaning system for laser | ||
| Nesting | Cypcut | ||
GF-1530JH In Russia
GF-1530JH In Australia

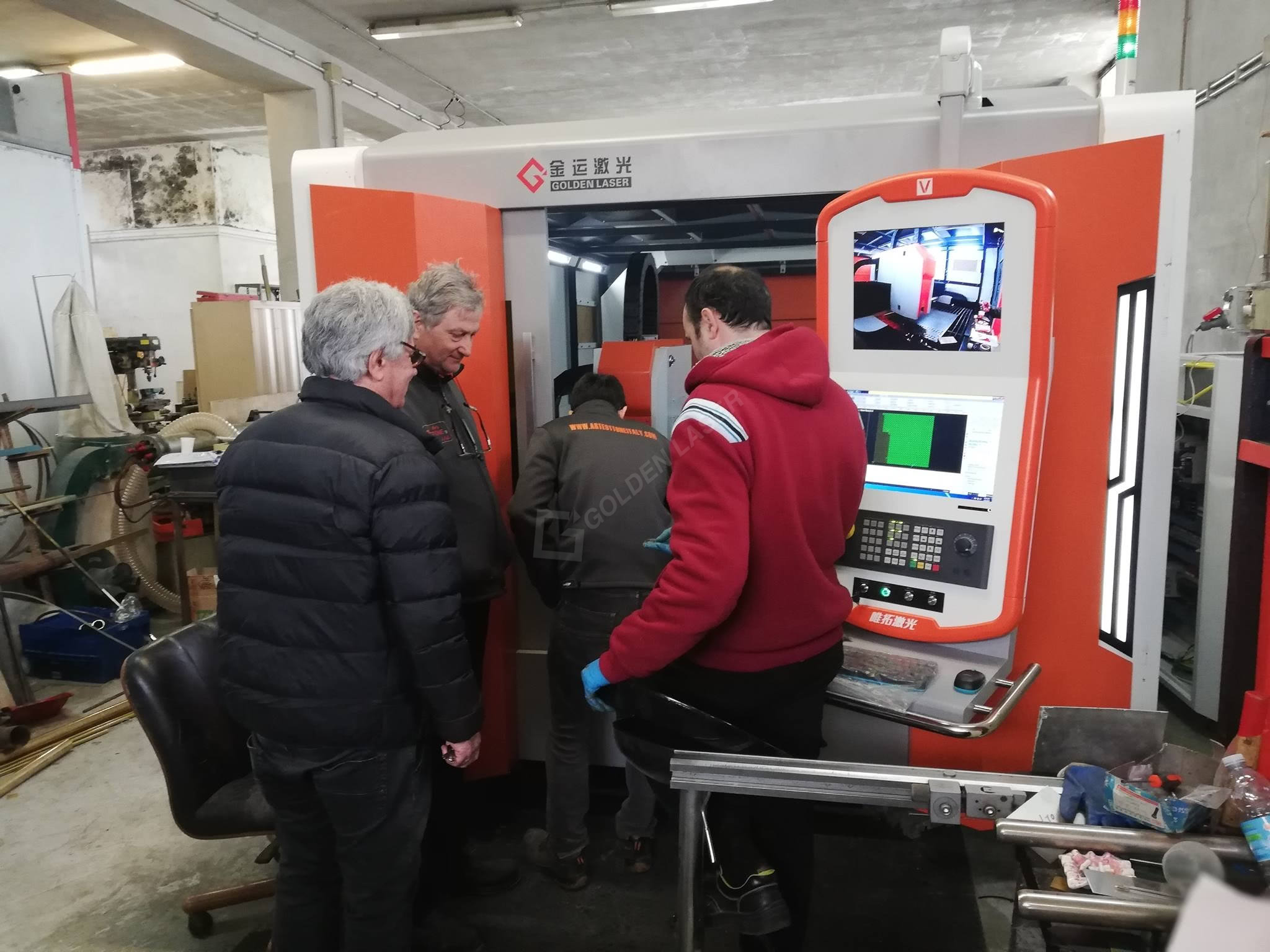

GF-1530JH In Italy
